Choosing the Right Subframe for Your Build

It’s what connects everything… and quietly decides how well it all works

When people start planning an expedition vehicle, most of the focus goes straight to the obvious bits. The truck. The habitation box. The layout. The look.

The subframe rarely gets the same attention.

It should.

Because this is the component that sits between your chassis and your living space. It manages movement, absorbs stress, and ultimately protects your build from the realities of off road travel.

Get it right and everything works as it should. Get it wrong and problems tend to show up when you’re a long way from home.

So how do you choose the right one?

Why Subframes Matter More Than You Think

Truck chassis are designed to flex. That flex is what keeps wheels on the ground over uneven terrain.

Your habitation box, on the other hand, is not designed to flex in the same way.

The job of a subframe is to manage that difference.

It allows the chassis to do what it needs to do, while protecting the structure above from stress, twisting and long term fatigue. It also plays a huge role in how your vehicle feels to drive and how it performs off road.

At Motorcraft, we’ve developed and refined multiple subframe systems over the years, each suited to different types of builds and usage.

Rail-on-Rail Subframes

Simple, strong and effective

Rail-on-rail systems are often the starting point for many builds.

They mount directly to the chassis rails and provide a solid, fixed connection between the truck and the habitation box. The design is straightforward, robust and well suited to vehicles that will see moderate off road use alongside regular road driving.

Rail-on-rail

For lighter builds or those that spend more time on-road than deep in rough terrain, this system offers a reliable and cost-effective solution.

It’s also a popular choice for customers looking for a clean, proven setup that does exactly what it needs to without unnecessary complexity.

Four-Point Torsion-Free Subframes

Maximum articulation for serious expedition use

At the other end of the spectrum is the four-point torsion-free subframe.

This system is designed to allow the chassis to twist freely underneath the habitation box, isolating the structure above from movement almost entirely.

If your build is heading into consistently rough terrain, long-distance overland travel or environments where articulation is non-negotiable, this is the setup that delivers.

It provides maximum protection for the habitation unit and ensures that doors, windows and internal structures aren’t being stressed every time the terrain gets challenging.

It’s a more specialised solution, but for the right application, it’s hard to beat.

The Kinetic Subframe

A balanced approach for modern expedition builds

Most builds don’t sit at either extreme.

That’s exactly why we developed the Kinetic Subframe.

This system takes the proven strength of a rail-on-rail design and combines it with controlled articulation inspired by torsion-free setups. The result is a subframe that allows movement where it’s needed, while maintaining a stable and predictable platform for the habitation box.

It’s designed to handle real-world use. Not just occasional tracks, and not just extreme terrain, but everything in between.

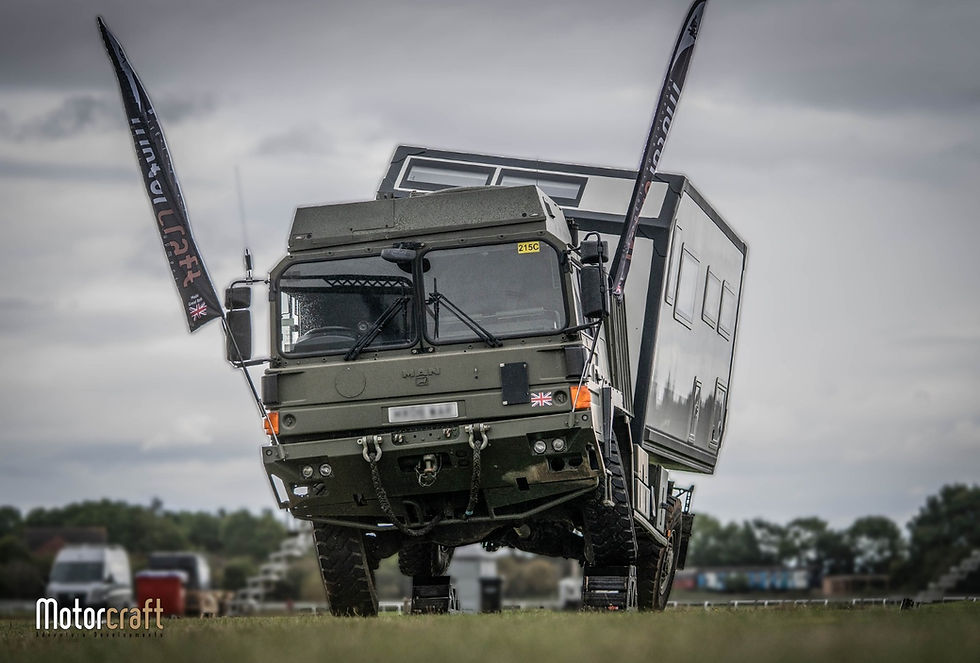

The first production unit has already been integrated onto a MAN expedition vehicle, where it’s demonstrated excellent performance both on and off road.

For many builds, this will become the go-to solution. Versatile, capable and engineered to work across a wide range of chassis and vehicle types.

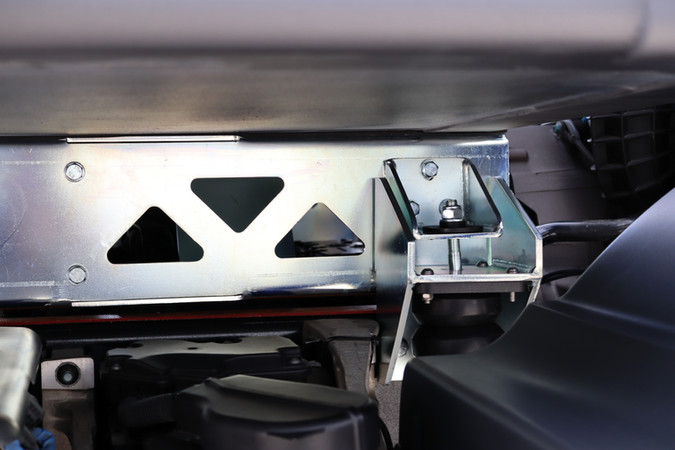

Motorcraft Kinetic Subframe

So… Which One Is Right for You?

There isn’t a one size fits all answer.

It comes down to how you plan to use your vehicle.

If your travels lean towards road use with occasional off road routes, a rail-on-rail system will likely do everything you need.

If you’re building for remote travel and challenging terrain, a torsion-free setup offers the highest level of protection and articulation.

If you want something that balances both worlds, the Kinetic Subframe sits right in that sweet spot.

Built In-House, Built for Purpose

Every Motorcraft subframe is designed and manufactured in-house, alongside the rest of your build.

That means every component works together as a complete system. No compromises, no guesswork, and no off-the-shelf solutions forced into place.

From the first design conversation through to the finished vehicle, the focus is always the same. Reliability, capability and long-term durability.

Because when you’re out there, that’s what matters.

Ready to Start Your Build?

Choosing the right subframe is just one part of the process, but it’s a critical one.

Explore our range online, including our Rail-on-Rail and Kinetic Subframe systems, via the Motorcraft web store.

📧 sales@motorcraft.com 📞 +44(0)1302 337842

🌐Contact Form

If you’re planning a build or looking to upgrade an existing vehicle, we’re always happy to talk through the options and find the setup that fits your needs.
